Please install your camera under the roof or place it with a shield to protect the device from sunlight and heavy rain.
The operating temperature of the Noorio cameras is -4℉ to 122℉ (-20℃ to 50℃). In a cold environment, the battery activity will be reduced and shorten the battery life. However, the battery performance will be back to normal when the device gets warmer.

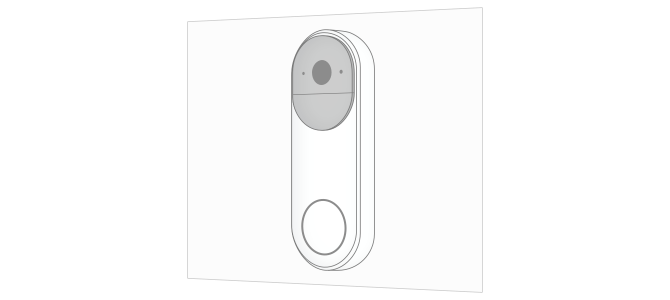

The Noorio D110 Doorbell offers two distinct installation methods, tailored to accommodate setups with or without existing doorbell wiring.
| Wired (traditional chime supported) | Wire-Free |
1 Wired Installation
1.1 Preparation
Before you mount, you may need a screwdriver and a drill with a 15/65 inch (5.95 mm) drill bit.
1.2 Installation Tips

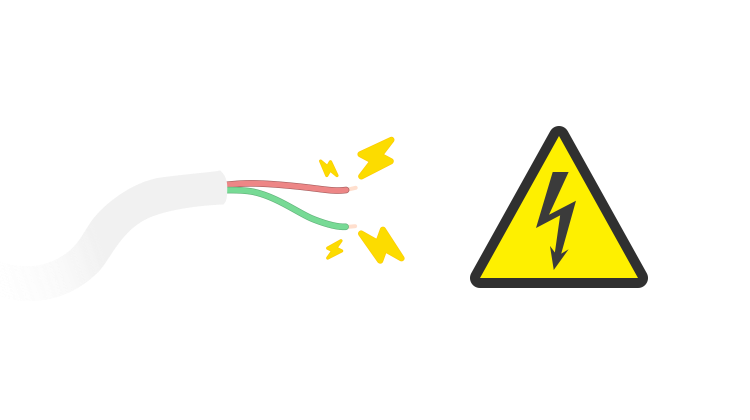

Be careful when handling electric wires. If you are not comfortable, do consulta qualified electrician.
1.3 Switch off Power

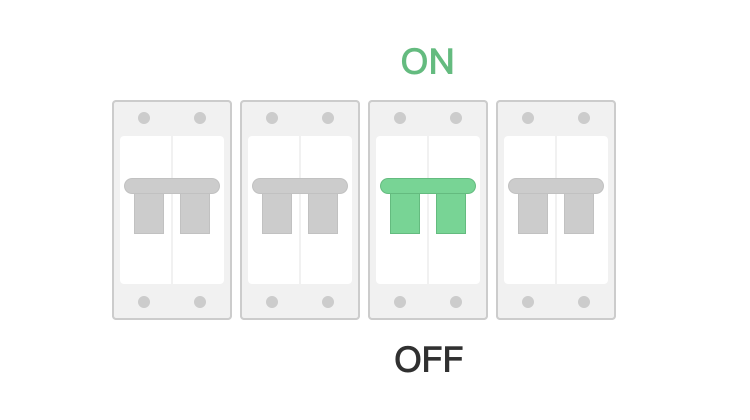

Switch off the power supply of your existing doorbell button at the fuse box or breaker. To keep safe, press the original doorbell button and listen to your chime once you shut down the power. Make sure you have successfully powered off your original doorbell.
1.4 Find a Good Location

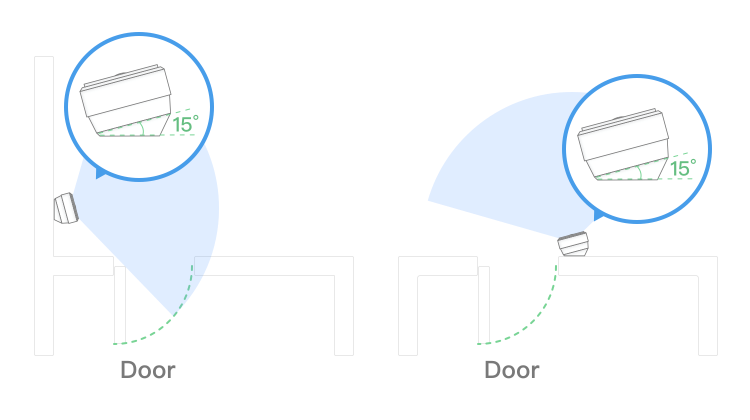

It is recommended to install the doorbell at 1.2 meter high in your front door. Use the 15° mounting widget to adjust the view angle if required.
1.5 Mount Your Device
1

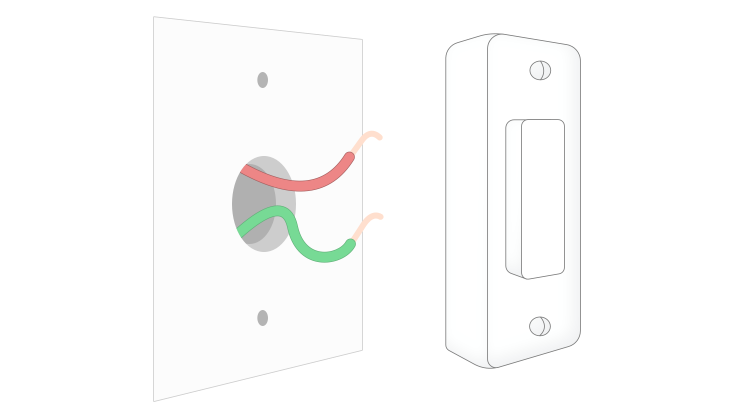

Detach the existing doorbell button and straighten the wire end if necessary.
2

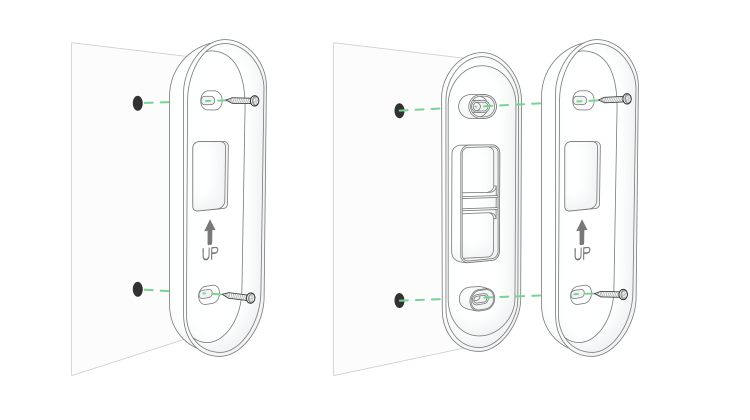

Install on wooden, plastic, and other soft materials: Screw the base of the bracket onto the wall directly.
Install on concrete, brick, and other hard materials: Stick the positioning card onto the wall. Then drill holes with a 15/65-inch (5.95mm) drill bit. Insert anchors into the holes and finally screw the base of the bracket onto the wall.
3
Add the 15° mounting widget to adjust the view angle if required.
4

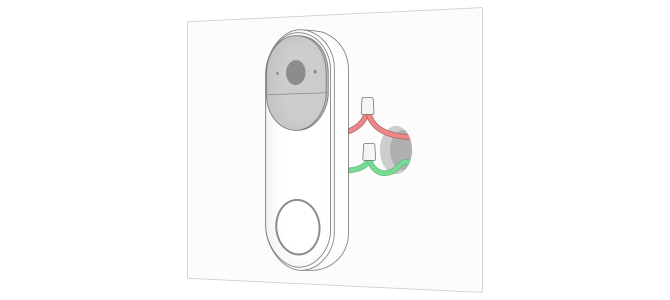

Connect the wire to the terminals at the back of the doorbell. Use the provided extension wires if the doorbell wires are too short.
5

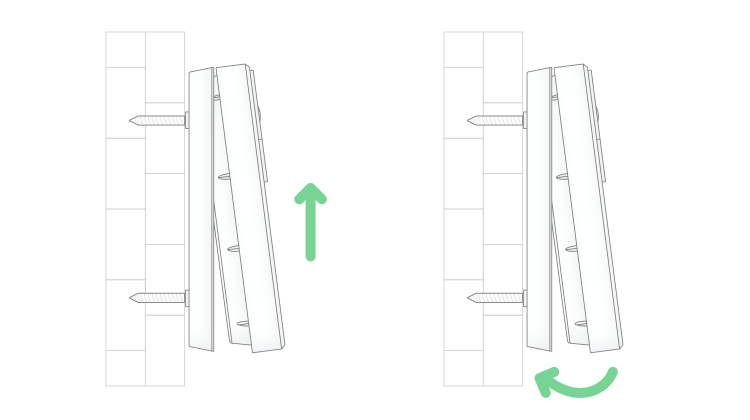

Attach the doorbell to its base.
1.6 Switch On Power
Switch on the power supply of your existing doorbell or the main power of your house at the fuse box or breaker.
1.7 Chime Setup
1

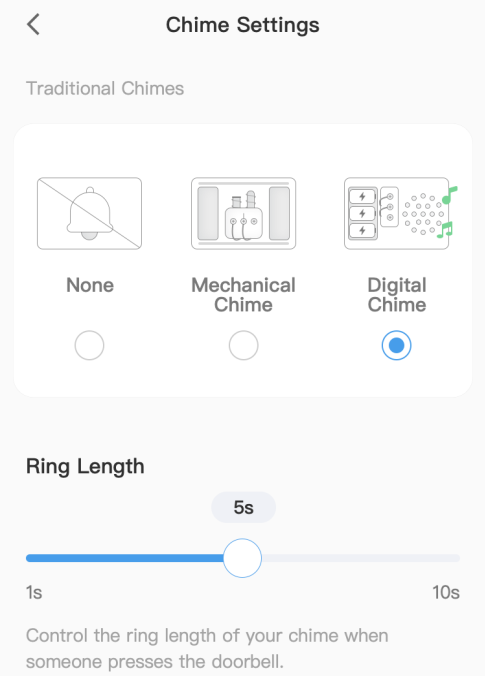

Existing Chimes: The Noorio D110 Doorbell is compatible with a wide range of chimes, including most traditional mechanical models and several digital ones. If you already have a chime installed, simply navigate to the Camera Settings, then to Chime Settings, to select the chime type that matches your setup. Additionally, for digital chimes, the Noorio D110 allows you to customize the ring duration, with a maximum setting of 10 seconds.
2

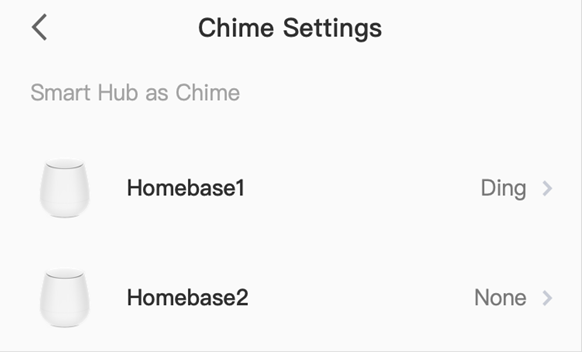

Hub as a Chime: If you've installed one or more Noorio Smart Hubs, you can easily set them up to function as chimes for your doorbell. Simply access the Camera Settings, navigate to Chime Settings, and select your desired Smart Hub. From there, you can choose your preferred doorbell alert, personalizing your Noorio experience to suit your needs.
2 Wire-Free Installation
2.1 Preparation
Before you mount, you may need a screwdriver and a drill with a 15/65 inch (5.95 mm) drill bit.
2.2 Find a Good Location
It is recommended to install the doorbell at 1.2 meter high in your front door. Use the 15° mounting widget to adjust the view angle if required.
2.3 Mount Your Device
1
Detach the existing doorbell button and straighten the wire end if necessary.
2
Install on wooden, plastic, and other soft materials: Screw the base of the bracket onto the wall directly.
Install on concrete, brick, and other hard materials: Stick the positioning card onto the wall. Then drill holes with a 15/65-inch (5.95mm) drill bit. Insert anchors into the holes and finally screw the base of the bracket onto the wall.
3
Add the 15° mounting widget to adjust the view angle if required.
4
Attach the doorbell to its base.
1.4 Chime Setup
Hub as a Chime: If you've installed one or more Noorio Smart Hubs, you can easily set them up to function as chimes for your doorbell. Simply access the Camera Settings, navigate to Chime Settings, and select your desired Smart Hub. From there, you can choose your preferred doorbell alert, personalizing your Noorio experience to suit your needs.
