Please install your camera under the roof or place it with a shield to protect the device from sunlight and heavy rain.
The operating temperature of the Noorio cameras is -4℉ to 122℉ (-20℃ to 50℃). In a cold environment, the battery activity will be reduced and shorten the battery life. However, the battery performance will be back to normal when the device gets warmer.
Compatible Devices
Bracket Type | Mounting Bracket | Magnetic Bracket | |||
Method | Screw Mount | Desk | Magnetic | Sticker | Screw Mount |
B200/B210 | √ | √ | √ | √ (if available) | √ |
B310 | √ | × | × | × | × |
B211 | √ | √ | √ | √ (if available) | √ |
B311 | √ | × | √ | × | √ |
Installation Method
Noorio cameras with magnetic bracket can be mounted in the following methods.
Desk |
Magnetic |
Sticker (If available) |
Screw Mounting |
Preparation

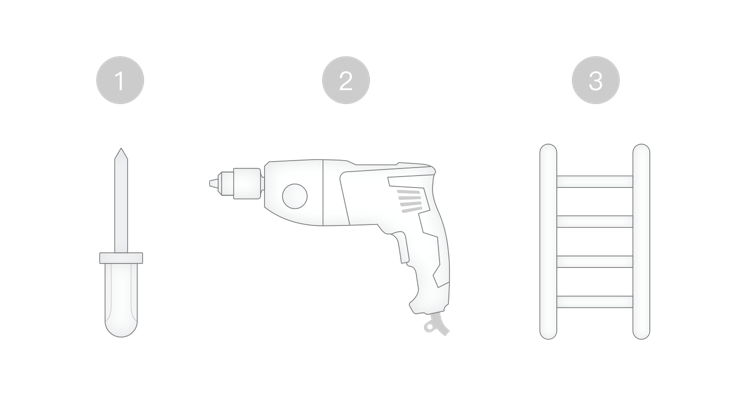

Before you mount, you may need a screwdriver, a drill with a 15/65 inch (5.95 mm) drill bit, and a ladder.
Installation Tips
1

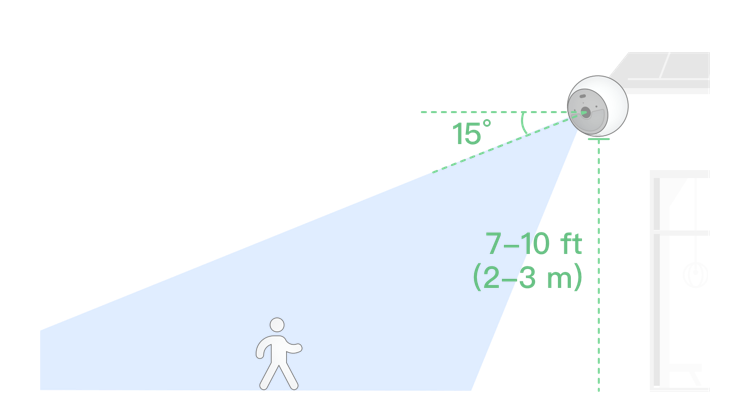

If you install the camera outdoors, it is recommended to install it 7-10 ft (2-3 m) and adjust the angle to about 15° to get the best field of view.
2
If you install the camera with 3M Sticker, it is recommended to follow the requirements below to prenvent the cramera from falling off. This is because the 3M sticker is sensitive to the environment and installation techniques.

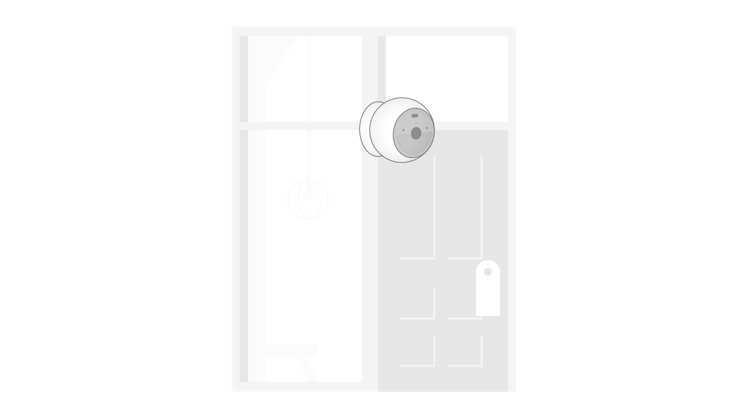

(a) Only installed on indoor glass or tiles.
(b) The ideal temperature for the 3M sticker is 59-100.4℉ (15-38℃). Do not install it with too low or too high a temperature.

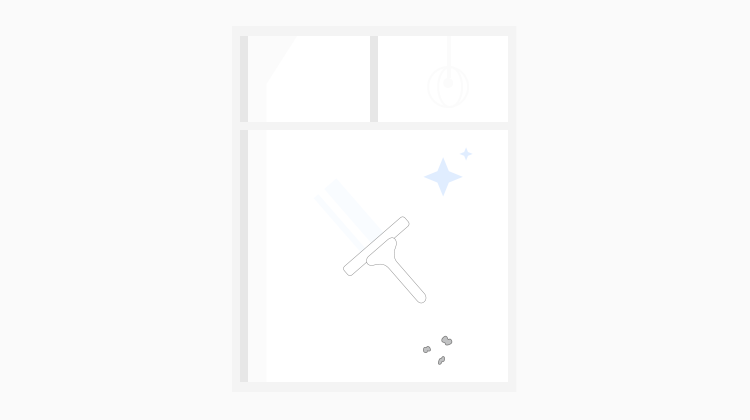

(c) Please clean the installation surface before installation. Make sure the surface is free of oil and dust.
(d) When sticking the bracket to the installation surface, please press the bracket firmly for at least 30 seconds. Leave it for over 24 hours before attaching the camera to it.
3

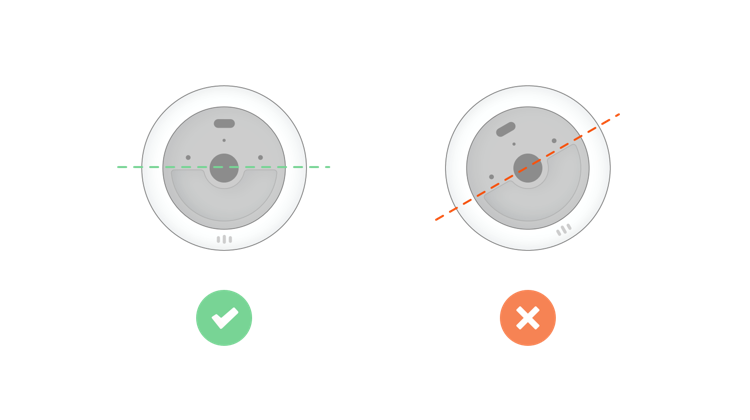

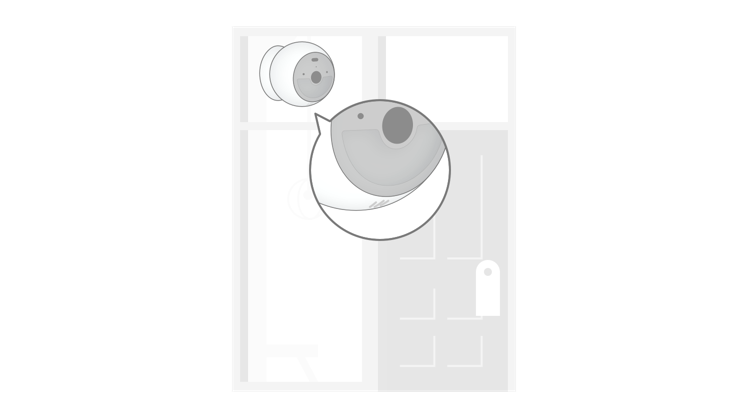

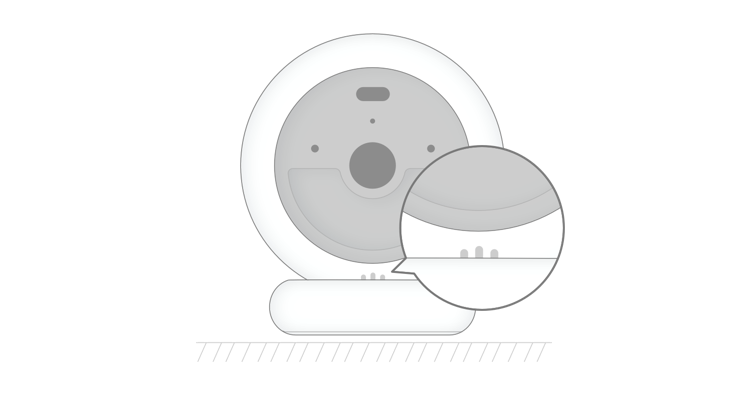

Straighten the camera to get the best performance.
4

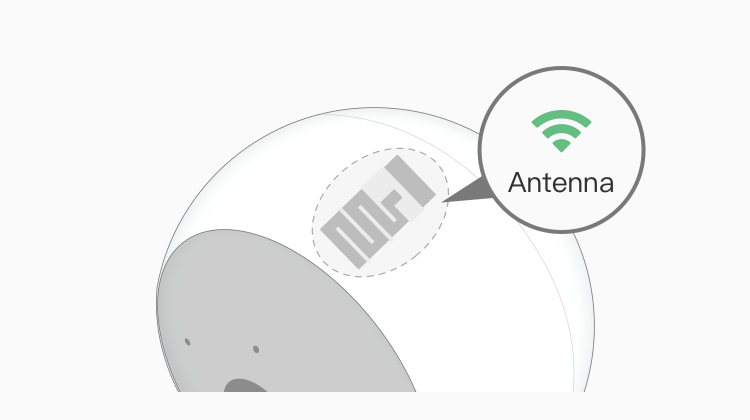

The antenna is on the top of the camera. Do not block with metal materials because they might negatively affect the camera's antenna performance.
5

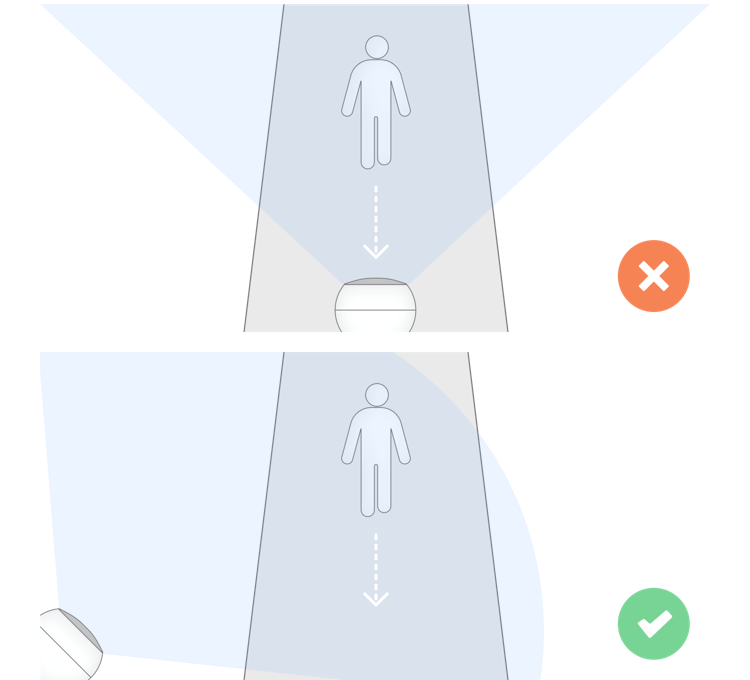

The camera is not sensitive to the object towards to the camera. Install it in the corner so the movement can go across the detection zones and trigger the motion detection.
Find a Good Location
Take your camera to the place you want to mount. Make sure it has good Wi-Fi connection and streams without lag.
Installation Method 1: Desk
1

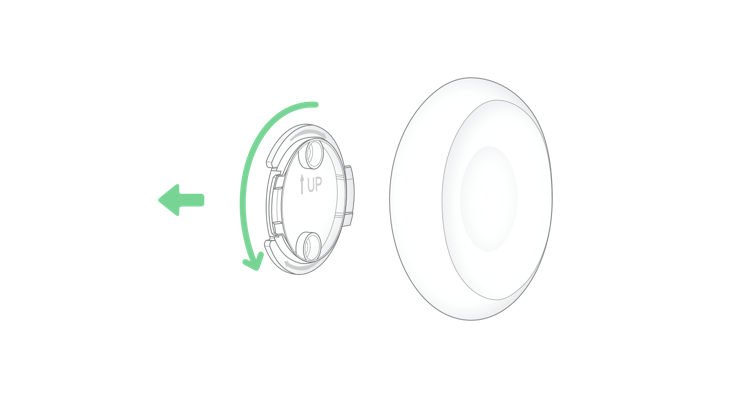

Turn the magnetic bracket clockwise to disassemble it.
2

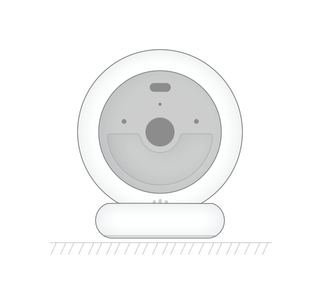

Place the magnetic bracket on a desk, then put the camera on it.

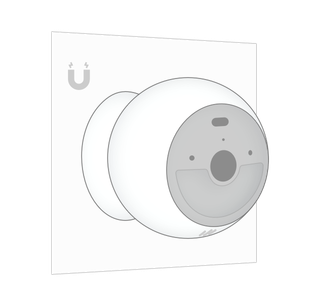

Installation Method 2: Magnetic
1
Turn the magnetic bracket clockwise to disassemble it.
2

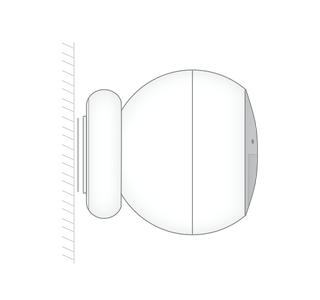

Attach the magnetic bracket on any iron surface and place the camera on the magnetic bracket.
Installation Method 3: Stickerc
1

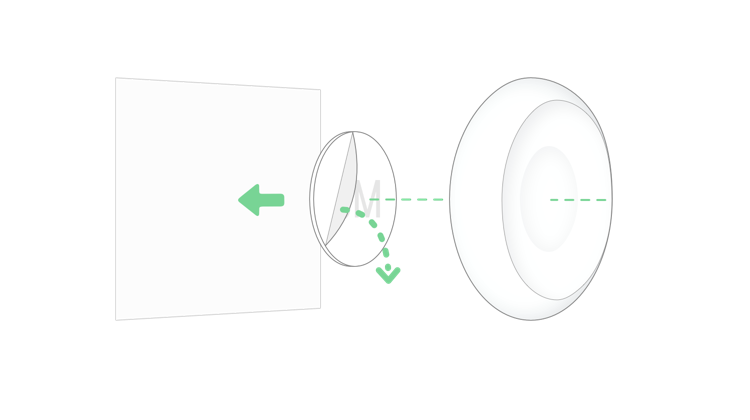

Tear off one side of the protection film on the 3M sticker and stick it to the base of the magnetic bracket.
2
Tear off another cover of the 3M sticker and sitck the bracket to flat surfaces. Press the bracket firmly at least 30s. Then attach to camera to the bracket.
Installation Method 4: Screw Mouning
1
Turn the magnetic bracket clockwise to disassemble it.
2

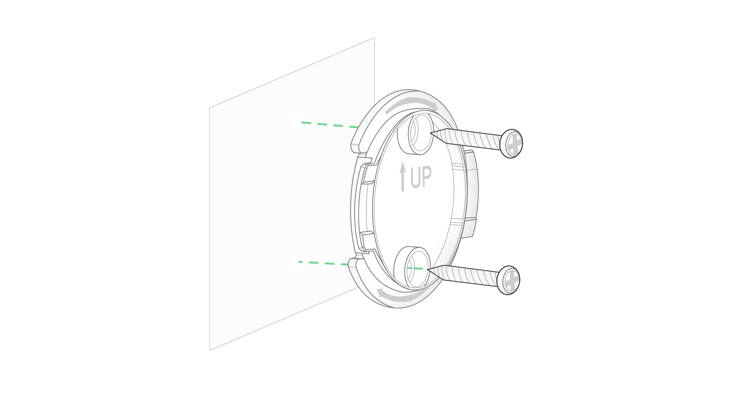

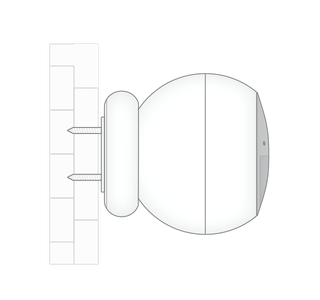

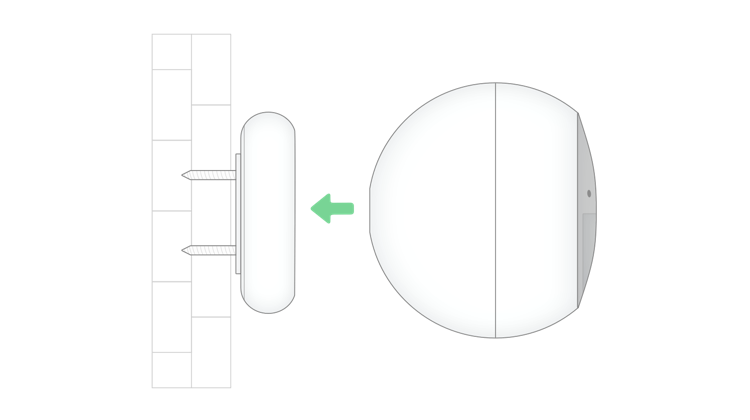

Install on wooden, plastic, and other soft materials: Srew the base of the bracket onto the wall directly.
Install on concrete, brick, and other hard materials: Stick the positioning card onto the wall. Then drill holes with a 15/65-inch (5.95mm) drill bit. Insert anchors into the holes and finally screw the base of the bracket onto the wall.
Install on concrete, brick, and other hard materials: Stick the positioning card onto the wall. Then drill holes with a 15/65-inch (5.95mm) drill bit. Insert anchors into the holes and finally screw the base of the bracket onto the wall.
3

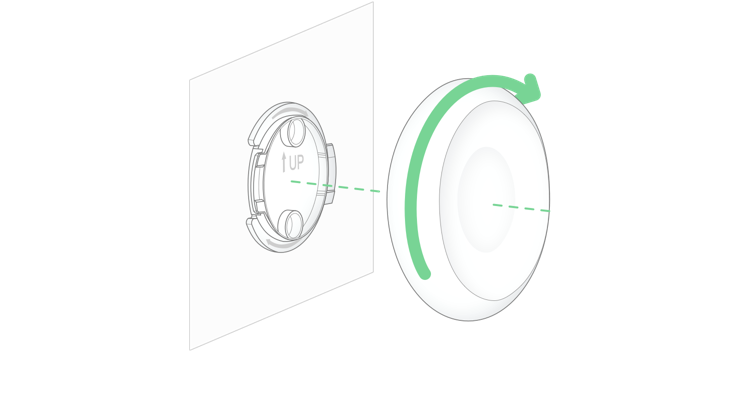

Fasten the bracket to its base.
4
Attach the camera on the magnetic bracket.
